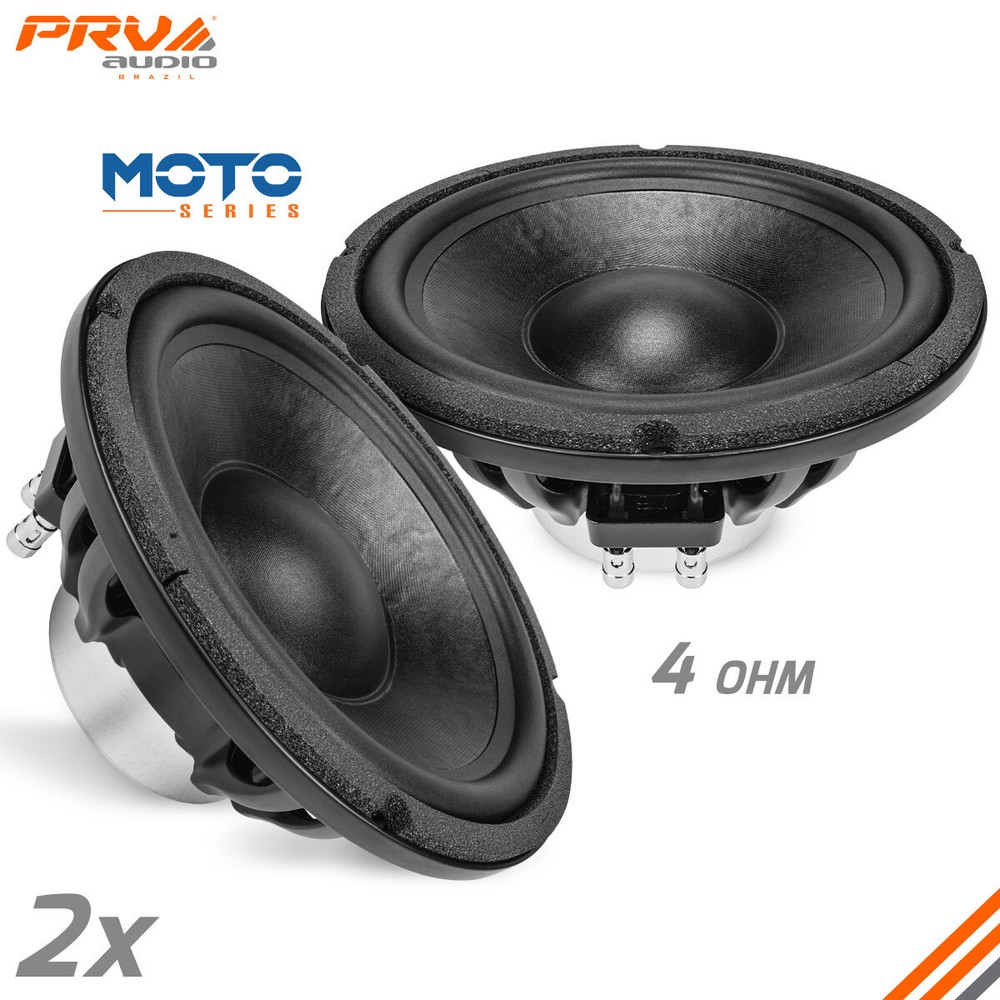

2x PRV 10″ Motorcycle Low Frequency Woofer 2400W 4 Ohm MT10W1200 Water Resistant
Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Voice Coil Wire | CCAW |
| Former Material | Glass Fiber |
| Nominal Impedance | 4 Ohm |
| Voice Coil Diameter | 3″ (76 mm) |
| MPN | MT10W1200-NDY-4 |
| Nominal Diameter | 10″ (254 mm) |
| Nominal Power Handling | 600 Watts |
| Max Peak Power | 2400 Watts |
| Voice Coil Winding Depth | 18.0 mm |
| Brand | PRV Audio |
| Type | Woofer(s) |
| Speaker Size | 10in. |
| Model | MT10W1200-NDY-4 |
| Continuous Program Power (RMS) | 1200 Watts |
| Frame Material | Die Cast Aluminum |
| RMS Power | 1200W |
| Frequency Response | 40 – 4,000 Hz |
| Magnetic Gap Depth | 10.0 mm |
INCLUDES: 2x MT10W1200-NDY-4 10" Water Resistant Motorcycle Woofer - 2400 Watts Package - 1200 Watts each Woofer FEATURES: Moto Series MT10W1200-NDY-4 has been engineered to give your custom motorcycle saddlebags the ultimate low frequency midbass response, considering the tough environment on the roads.PRV Audio is proud to present our new MOTO Series (MT), high performance PRO audio line dedicated for motorsports installations, focused on bringing to you the latest innovative materials and components to resist weather conditions and to provide the highest sound reproduction possible.HighlightsOptimized for use in compact enclosures this mid is ideal for motorcycle saddlebags1,200 watts RMS power makes high acoustical outputRubber Surround allows a generous 1.65″ peak-to-peak excursionPowerful neodymium magnet structure features distortion-canceling fixturesFast transient response, deep low tones and dynamic mid bassWeather-resistant paper cone and dust cap with true PRO audio midbass performanceThe MT10W1200-NDY-4 sets a new performance standards that combines durability, efficiency, and maximum displacement into a great looking midbass speaker that will deliver the deepest low frequency response with power and authority.Custom tooled surround allows long throw while maximizing cone surface area, to get superior fidelity and high efficiency!The special composite cone is built with non-pressed paper for reduced break-up and treated to be water resistant, delivering a smooth frequency response and a low moving mass, increasing the efficiency of the speaker, with a generous 1.65″ peak-to-peak excursion before damage.Extensive motor venting cools the voice coil enabling high power handling with low power compression. The large 3″ voice coil allows for 1200 Watts of Amplifier RMS Power, and warrants the outstanding cooling system implemented into the motor.Its powerful optimized neodymium motor is vented to provide excellent cooling for its voice coil. This neo magnet also helps decreasing the weight on the speaker comparing to a ferrite magnet motor. This compact design will fit and sound great on any saddlebag that has about 1 cubic feet. Able to stand up to the use and abuse on bike sound competitions its 3″ voice coil that is wound inside-outside on a fiberglass former features a generous 18 mm winding length for extended Xmax and less distortion.High sensitivity rating of 97 dB 1W/1M which makes it capable of generating a lot of output! GENERAL SPECIFICATIONSNominal Diameter10″ (254 mm)Nominal impedance*4 OhmNominal Power Handling**600 WattsContinuous Program Power (RMS)1200 WattsMax Peak Power***2400 WattsSensitivity 2.00V at 1m97.0 dBRecommended Hi Pass Crossover* *For Full Power Handling65 Hz* *12db Per Octave CrossoverFrequency Response40 – 4,000 HzVoice Coil Diameter3″ (76 mm)Voice Coil WireCCAWVoice Coil Winding Depth18.0 mmFormer MaterialGlass FiberMagnetic Gap Depth10.0 mmFrame MaterialDie Cast AluminumTHIELE-SMALL PARAMETERSEquivalent VolumeVas41.24 lExcursion (mathematical)***Xmax6.5 mmFree Air ResonanceFs46.9 HzMechanical FactorQms7.94Electrical FactorQes0.31Total FactorQts0.30Cone AreaSd373 cm²Mechanical MassMms54.1 gBl FactorBl12.29 TmDc ResistanceRe3.0 OhmInductanceLe0.376 mH at 1 kHzMechanical Mass Without AirMmd50.0 gMechanical ComplianceCms0.212 mm/N EXTRA INFOOverall Diameter10.27” (261 mm)Front Mount Baffle Cutout9.05” (230 mm)Mounting Depth4.49” (114 mm)Overall Depth5.00” (127 mm)Net Weight8.38 Lbs (3.8 kg)Shipping Weight9.95 Lbs (4.5 kg)Carton Dimensions W x L x H11.25”x 11.5” x 6” (286 x 292 x 152 mm)
