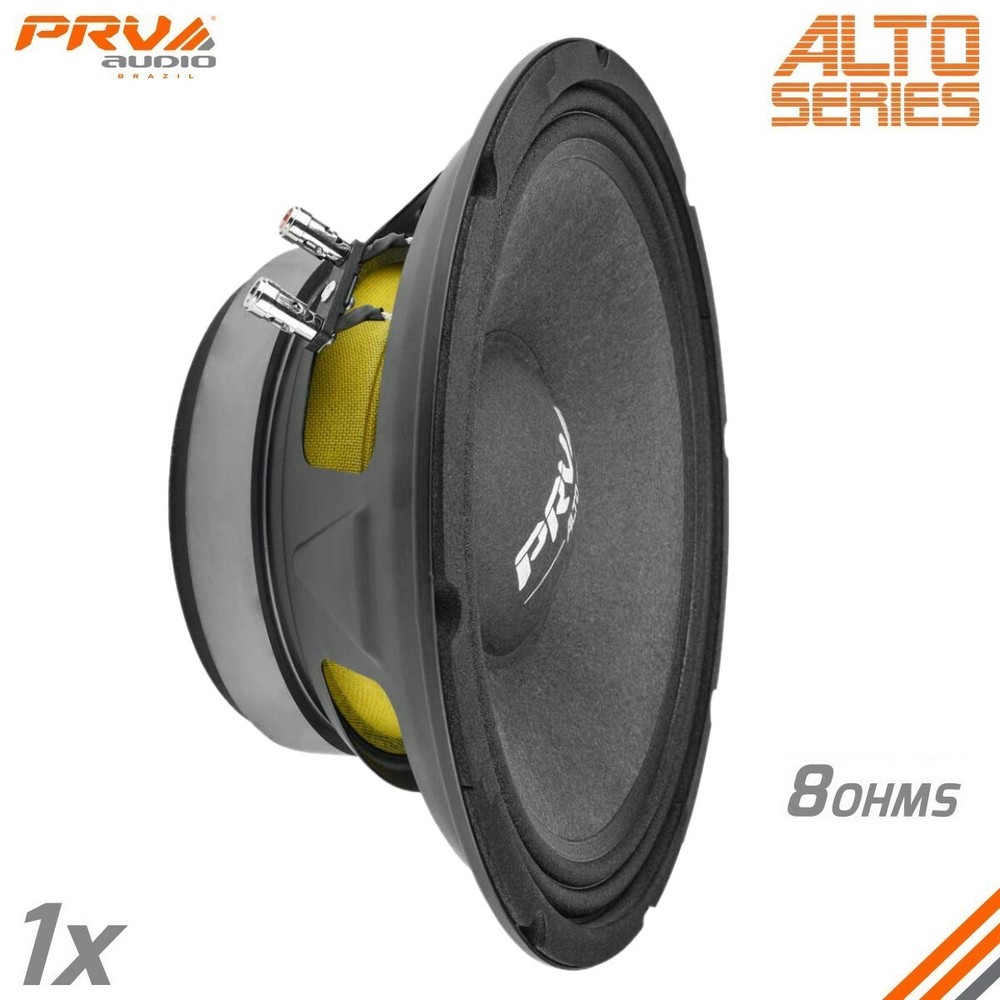

1x PRV Audio 10MR650A Midrange 10″ Speaker 8 Ohms 10in PRO Car Audio 650 Watts
Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Nominal Diameter | 10″ (254 mm) |
| Nominal Impedance | 8 Ohms |
| Program Power | 650 Watts |
| Voice Coil Diameter | 2.5″ (68 mm) |
| MPN | 10MR650A |
| Brand | PRV Audio |
| Type | Mid-Range Speaker(s) |
| Speaker Size | 10in. |
| Model | 10MR650A |
| RMS Power | 325W |
INCLUDES: 1X 10MR650A 10" MID RANGE LOUDSPEAKER FEATURES: Coming soon, the brand new ALTO Series 10″ Mid Range Loudspeaker. Highlights: Nominal Impedance: 8 Ohms Rated AES Power Handling (RMS): 325 Watts Program Power: 650 Watts Voice Coil Diameter: 2.5″ Technical Details GENERAL SPECIFICATIONS Nominal Diameter 10″ (254 mm) Nominal impedance 8 Ohms Rated AES Power Handling (RMS) 325 Watts Program Power 650 Watts Sensitivity 2.83V at 1m 97.5 dB Recommended Hi Pass Crossover** **For Full Power Handling 150 Hz** **12db Per Octave Crossover Frequency Response at -10DB 80 – 6,500 Hz Voice Coil Diameter 2.5″ (68 mm) Voice Coil Wire CCAW Voice Coil Winding Depth 16.2 mm Former Material Polyimide Magnetic Gap Depth 9.5 mm Frame Material Stamped Steel Equivalent Volume Vas 41.9 l Excursion (mathematical)*** Xmax 5.72 mm Free Air Resonance Fs 64.7 Hz Mechanical Factor Qms 14.19 Electrical Factor Qes 0.48 Total Factor Qts 0.47 Cone Area Sd 398 cm² Mechanical Mass Mms 31.86 g Bl Factor Bl 12.25 Tm Dc Resistance Re 5.6 Ohms Inductance Le 0.44 mH at 1 kHz Mechanical Mass Without Air Mmd 27.37 g Mechanical Compliance Cms 0.190 mm/N EXTRA INFO Overall Diameter 10.10”(256.5 mm) Front Mount Baffle Cutout 9.20” (233.5 mm) Mounting Depth 3.90”(99 mm) Overall Depth 4.23”(107.5 mm) Net Weight 10.4 Lbs (4.7 kg) Shipping Weight 12.8 Lbs (5.8 kg) Carton Dimensions W x L x H 12.9”x 12.9” x 6.9” (328 x 328 x 175mm)
