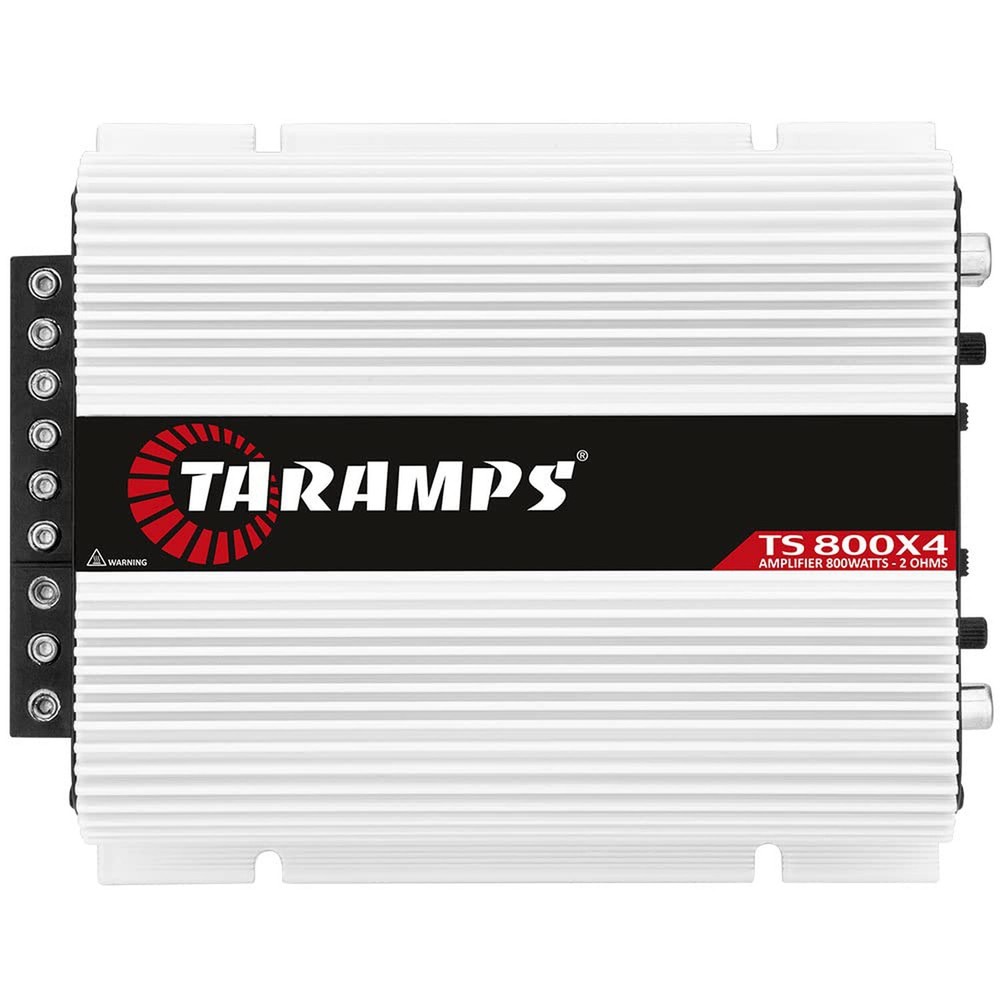

Taramps TS 800×4 2 Ohms 4 Channels High Level Input 800W Full Range Amplifier
Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Brand | Taramps |
| EAN | 7898556849043 |
| Model | Taramps TS 800X4 |
| MPN | TS 800X4 |
| RMS Power | 800W |
It is public knowledge that the demand for amplifiers suitable for factory radios and Multimedia is growing every day.With that in mind, we created the new TS 800×4 2 Ohms with 4-channel high-level individual input and automatic activation. This feature makes it ideal for this type of application, eliminating the need for adapters.With 800 watts of Power distributed in 4 channels and the possibility of connection in Bridge, it can be used with the most varied models of speakers, drivers and super tweeters.In addition, it has the traditional RCA inputs, gain adjustment and fixed Crossover (HPF, LPF and Full), typical feature of Taramps products.Another point to be highlighted is the new power and output connector, which, in addition to being robust, ensures more practicality and safety in the installation.All this and much more, so that your pleasure in listening to music is even greater. TECHNICAL INFORMATIONOPERATION CLASSDNUMBER OF CHANNELS04MAXIMUM POWER@ 14.4 VDC - 2 OHMS: 800W RMS (4 x 200W RMS)@ 14.4 VDC - 4 OHMS: 544W RMS (4 x 136W RMS)2 Bridged Channels 4 OHMS: 400W RMS (2 x 400W RMS)INPUT SENSITIVITY(RCA): 4V (min.) / 250mV (max.)(WIRE): >10V (min.) / 3V (max.)SIGNAL TO NOISE RATIO>90dBFREQUENCY RESPONSE10Hz ~ 20KHz (-3dB)CROSSOVER HIGH PASS (HPF)90Hz (-12dB/8ª) FixedCROSSOVER LOW PASS (LPF)90Hz (-12dB/8ª) FixedINPUT IMPEDANCE10K Ohms (RCA)PROTECTION SYSTEMOutput Short CircuitMINIMUM SUPPLY VOLTAGE9VDCMAXIMUM SUPPLY VOLTAGE16VDCCONSUMPTION AT REST0.9AMAXIMUM MUSIC CONSUMPTION38AMAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL76ADIMENSIONS (WXHXD)5.43" x 1.89" x 6.89" (138 x 48 x 175mm)WEIGHT1.91lb (0.87Kg)EAN7898556849043
