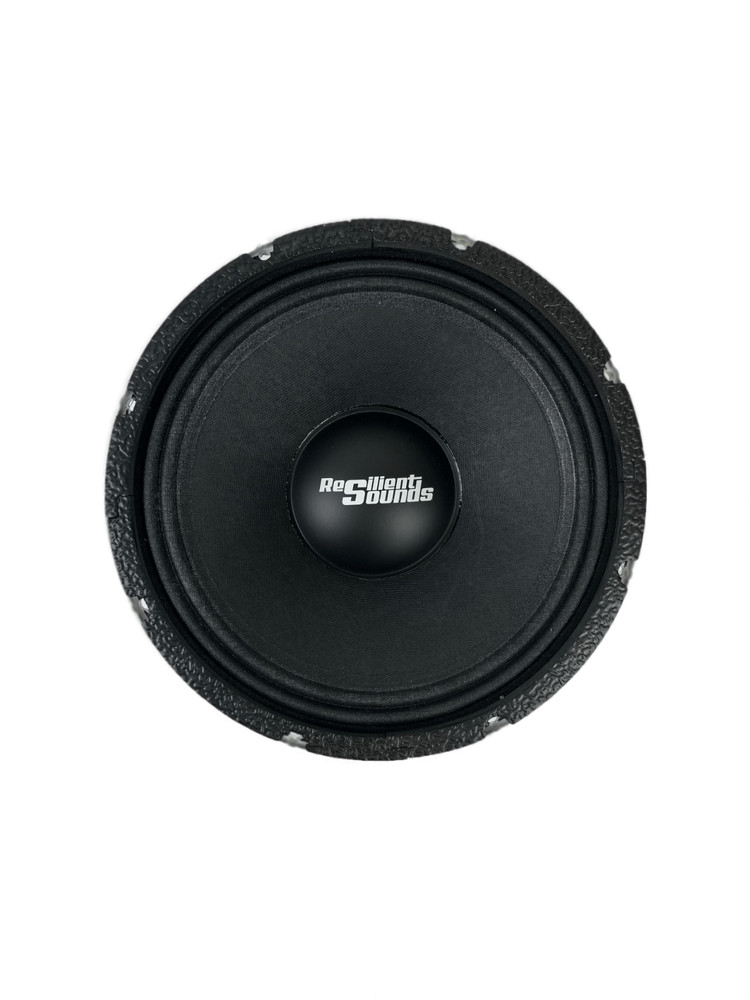

RESILIENT SOUNDS NEO 10 500w rms 4ohm 10″ speaker
Specifications
| All Returns Accepted | ReturnsNotAccepted |
| Brand | Resilient Sounds |
| Type | Mid-Range Speaker(s) |
| Speaker Size | 10in. |
| Model | neo 10 |
| MPN | DOES NOT APPLY |
| RMS Power | 500W |
Neo 10 1000 Watts Max Power Handling 2.5" Voice Coil 98.5 dB Sensitivity 75HZ-6.5KHz of frequency response GENERAL SPECIFICATIONS Nominal Diameter 10” (254mm)Max Power Handling 1000 wRMS Power Handling 500 wFrequency Response 75Hz-6.5KHZNominal Impedance 4ohmSensitivity 98.5dBMagnet NeodymiumVoice Coil Diameter 2.5"Voice Coil Wire CCAW THIELE-SMALL PARAMETERS Equivalent Volume Vas 26.8 LFree Air Resonance Fs 76 HzMechanical Factor Qms 4.5Electrical Factor Qes 0.37Total Factor Qts 0.34Cone Area Sd 349.6cm²Mechanical Mass Mms 27.96 gBI Factor BI 10.77 TmDc Resistance Re 3.2 Ohms MOUNTING INFO Overall Diameter 10.31”(262mm)Front Mount Baffle Cutout 9.25"(235mm) Mounting Depth 4.09"(104mm)Overall Depth 4.52"(115mm) Check for more items in our shop
