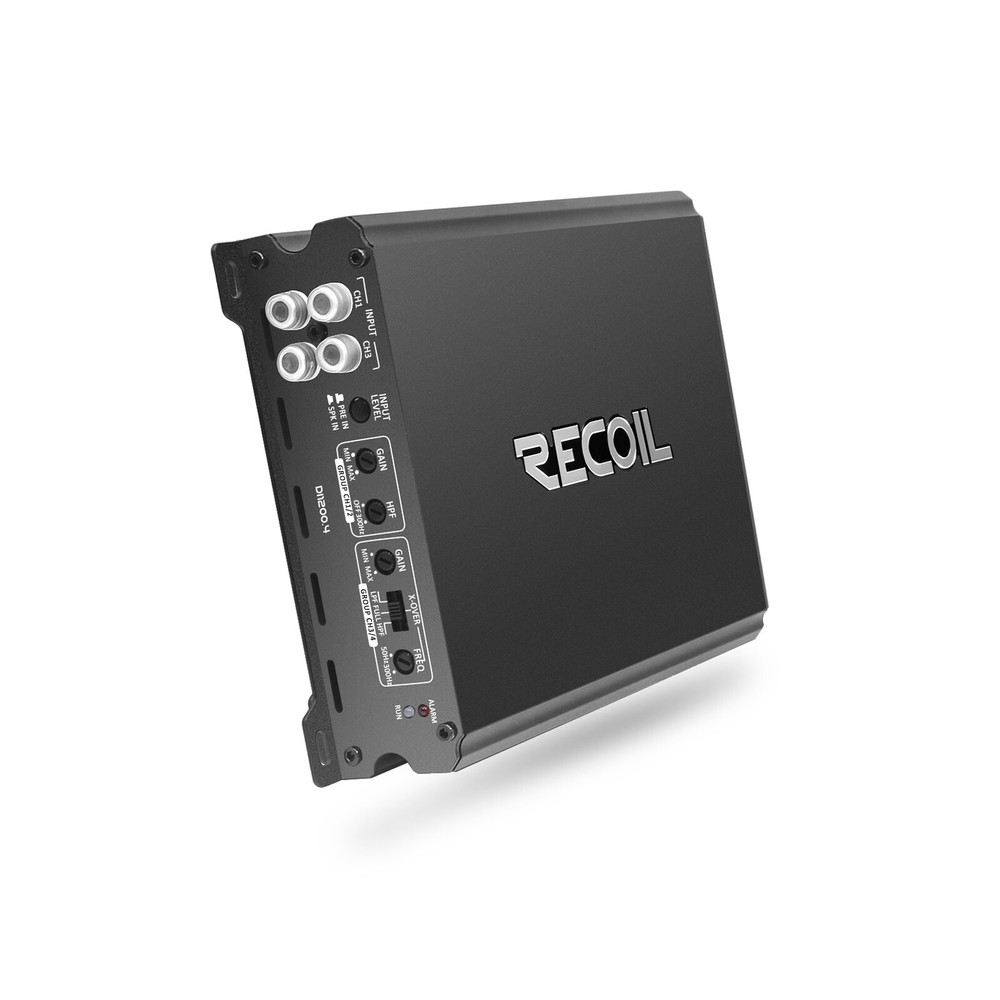

Recoil A DI1200-4 Full-Range Class-D 4-Channel Car Audio Amplifier, 2400 Watts

Recoil A DI1200-4 Full-Range Class-D 4-Channel Car Audio Amplifier, 2400 Watts

USD 109.99 USD

SKU: UdEWqRqU

Brand: Recoil

MPN: DI1200-4

GTIN: Does Not Apply

Condition: Open box

Tags: 0.06% 1200mA 14 Volts (DC) 15Hz-25kHz 300mV-3.3V 50A×2 50Hz-300Hz 600mV-6.5V 85dB 9-16V Amplifier, Speaker China DI1200-4 RECOIL Recoil DI1200-4 Surface Mount

Categories: Portable Audio & Headphones

Specifications

Input Sensitivity (High Level)	600mV-6.5V
MPN	DI1200-4
Input Sensitivity(Low Level)	300mV-3.3V
Crossover LPF	50Hz-300Hz
Mounting Type	Surface Mount
Fuse Rating	50A×2
Crossover HPF	50Hz-300Hz
Brand	Recoil
Idling Current（Power On）	1200mA
THD+N ( @1W )	0.06%
Operating Voltage	9-16V
Voltage	14 Volts (DC)
Model	Recoil DI1200-4
Signal To Noise Ratio(SNR)	85dB
Frequency Response	15Hz-25kHz
Country Of Origin	China

Class-D 4-Channel Amplifier, 2400 Watts Max Power, RMS 300 Watts x 4@2 Ohm; RMS 210 Watts x 4@4Ohm; RMS (Bridged): 610 Watts x 2@4Ohm; Peak Power: 600 Watts x 4@2Ohm. Highly efficient heatsinks keep the amplifier cool with a sophisticated new look.
