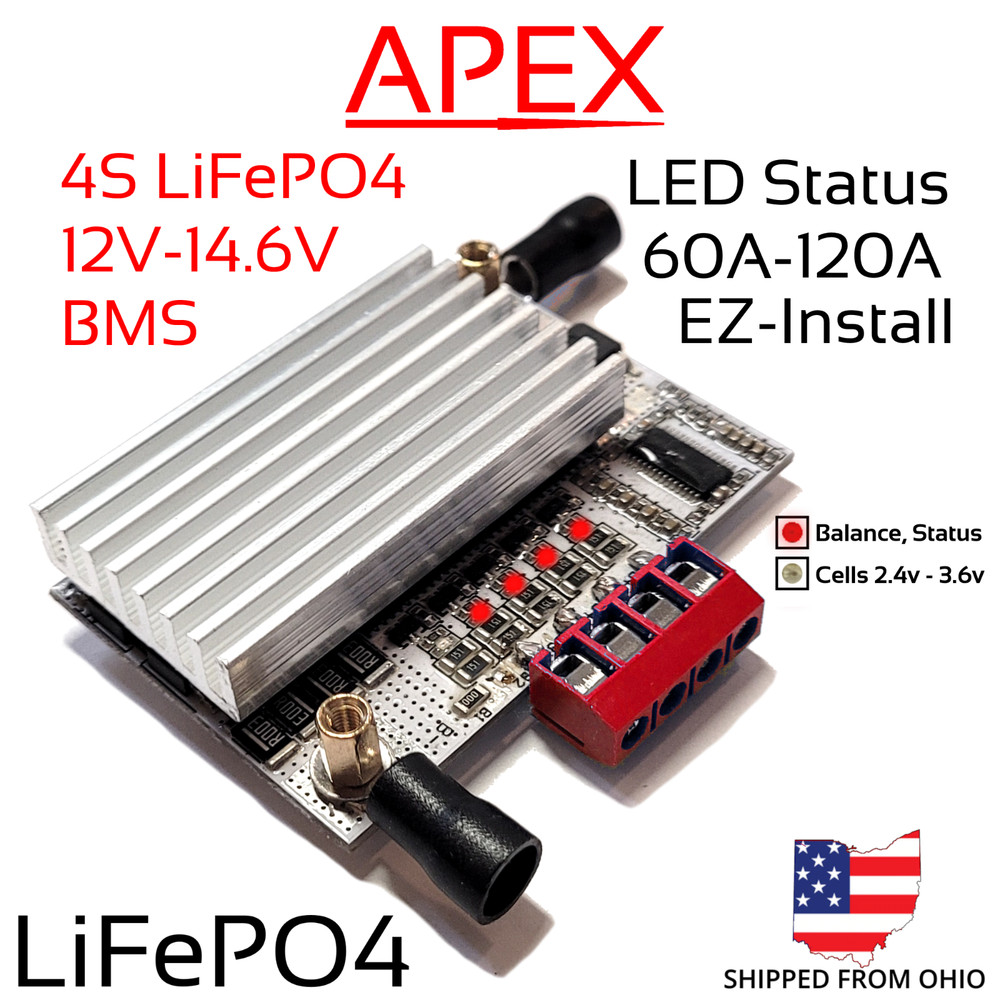

Plug and Play 4S 120A 12v 14.6v LiFePO4 BMS Battery Balance 12.8v
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Nominal Voltage Rating (DC) | 12 V |
| Maximum Continuous Output Current | 120 A |
| Nominal Current Rating | 120 A |
| Nominal Voltage Rating (AC) | 12 V |
| Current Conversion | DC to DC |
| Size | 6cm x 4.2cm |
| Color | White |
| Nominal Power Rating | 1200W |
| Charging Voltage | 10V - 14.6V |
| MPN | Does Not Apply |
| Minimum Operating Temperature | -40 °C (-40 °F) |
| Brand | APEX |
| Type | BMS |
| Output Voltage Rating (DC) | 14.6 V |
| Inrush Current Rating | 60 A |
| Input Voltage Range | 10V - 14.6V |
| Maximum Operating Temperature | 85 °C (185 °F) |
| Country/Region Of Manufacture | United States |
| Output Voltage Range | 10V - 14.6V |
| Maximum Peak Output Current | 100 A |
Note: This BMS is a custom model that comes pre assembled for easy install (no soldering needed) and is for LiFePO4, LiFe, or LFP batteries. Lithium-ion (Li-ion)/Lithium-polymer (LiPo) based BMS boards are in my other listings. Description: This BMS balance board is used for a lithium battery pack to equalize voltage and protect the cells. This module charges, discharges, balances, and acts as a low voltage/over charge cutoff. We have pre installed a screw based connection block for the easy connection of balance wires to the BMS. The BMS is assembled to use a COMMON Port setup for both charge and discharge at 60A (continuous) and discharge at 120A (burst). The following is the BMS parts list: (1) BMS Board LiFePO4 LiFe LFP(2) Ring Terminal Connectors M3, 8-16AWG Wire Compatibility (2) Ring Terminal Screws and Washers(1) Pre-installed balance wire connection block, 16-24AWG Wire Compatibility *Wires are not included. Balance wires of 16-24AWG will fit in the balance connection terminal and primary wires of 8-16AWG can be used in the ring connectors. Larger gauge primary wires can be used with larger ring connectors or solder points. Battery compatibility: Voltage of 2.4V - 3.7V LiFePO4 battery typesCharging input voltage: 12V - 14.6VMaximum starting current: 120AMaximum continuous current: 60ACharge current: 60AMaximum continuous current (additional solder point): 100ABoard Size: approx. 42*60*7.4mmPackage includes: 1 x LiFePO4 Battery Protection Board Condition is New. Shipped with USPS First Class.
