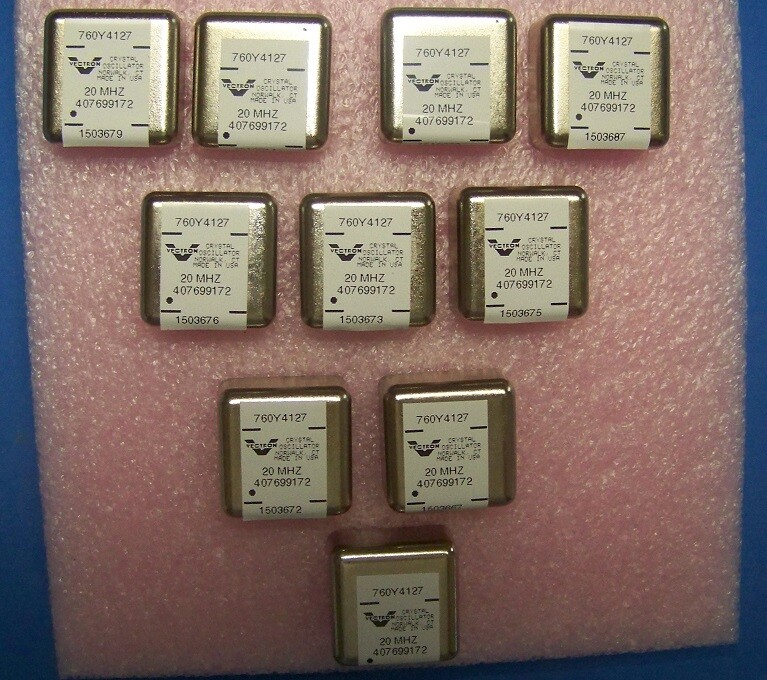

Nice Vectron 20MHz Square wave OCXO +5V -150dBc PN @ 1KHz O.S. 0.5PPM 2PPB short
USD 25.00 USD
Specifications
| MPN | 760Y series |
| Type | OCXO |
| Features | Fast Square Wave |
| Compatible Brand | CTI |
| Brand | Vectron |
| Voltage | +5V |
For sine wave output just add a filter to capture the harmonic of your choice. Since this is high speed C-moss there is plenty of harmonic energy even @ 200MHz. See examples in the data photo. I added a 20MHz filter when testing the phase noise.
