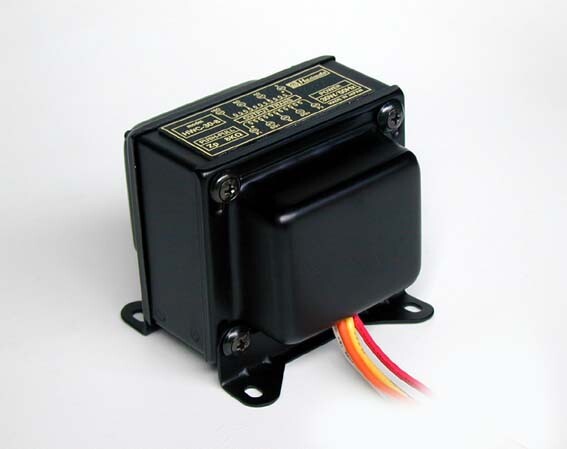

Hashimoto HWC-30-8 Output Trans 30W Push-Pull 8K/16,8,4Ohm for 6L6GC, 6BQ5 etc.
USD 205.49 USD
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Model | Hashimoto HWC-30-8 |
| MPN | HWC-30-8 |
| Country/Region Of Manufacture | Japan |
| Brand | Hashimoto |
Hashimoto Electric Co., Ltd. owns all the know-how of Sansui Transformers because the transfer of SANSUI transformers to Hashimoto in 1978 was a complete transfer including technical materials and design engineers. Specification Part NumberHWC-30-8Rated Output Power (W)30W at 50HzPrimary Impedance8KΩSecondary Impedance4,8,16ΩSG tap ProvidedFrequency Range 10Hz～50kHz (+-2dB)Insertion Loss0.2dBPrimary Inductancew/ Applied CurrentBalance 160H Unbalance 120HMaximum Allowable DC CurrentBalance 160mA Unbalance 5.0mAOutline typePL-85BSize (AxBxH : refer to Drwg.)90 x 90 x 83 Screw Size (mm) Weight 2.0KgTubes to be matched with6L6GC, 6BQ5, 6F6, 6V6, KT-66
