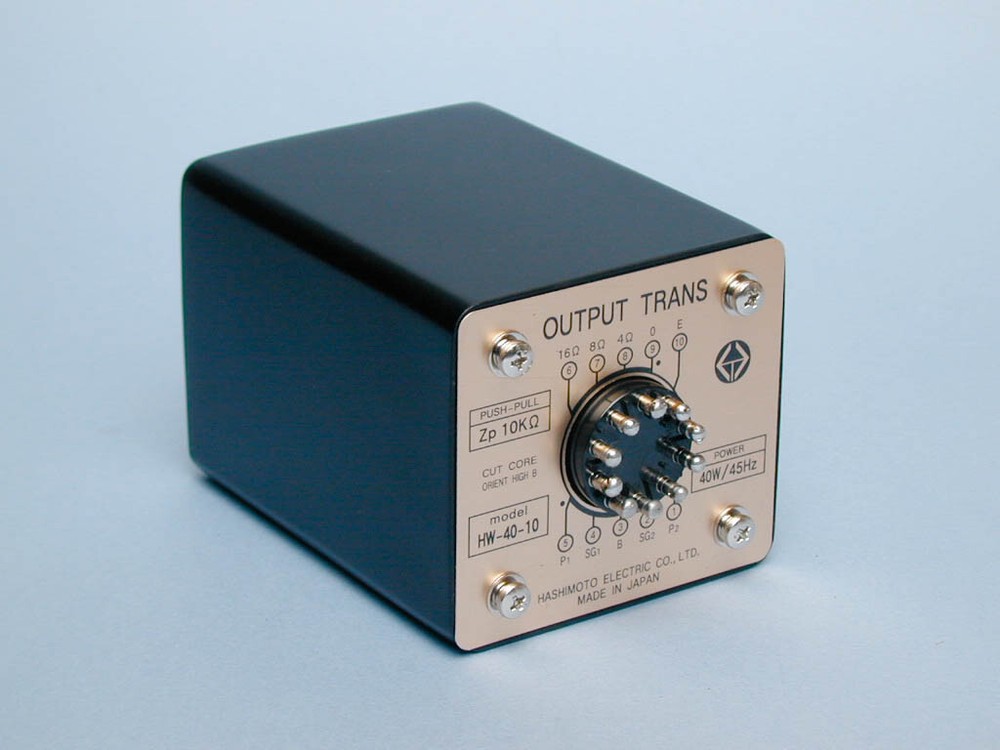

Hashimoto HW-40-10 Out Trans 40W P-P 8K/16,8,4ohm for 6V6,VT-62/801A,6F6,42 etc.
USD 329.00 USD
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Model | Hashimoto HW-40-10 |
| Country/Region Of Manufacture | Japan |
| Rated Output Power | 40W at 45Hz |
| Primary Impedance | 10 Kohms |
| Secondary Impedance (Load Impedance) | 4, 8, 16 ohms |
| Frequency Response | 10 - 60KHz (+/- 1dB) |
| Insertion Loss | 0.2 dB |
| MPN | HW-40-10 |
| Brand | Hashimoto |
Hashimoto Electric Co., Ltd. owns all the know-how of Sansui Transformers because the transfer of SANSUI transformers to Hashimoto in 1978 was a complete transfer including technical materials and design engineers. Specification Part NumberHW-40-10Rated Output Power (W)40W at 45HzPrimary Impedance10KΩSecondary Impedance4,8,16ΩSG tap ProvidedFrequency Range 10Hz～60kHz (+-1dB)Insertion Loss0.2dBPrimary Inductancew/ Applied CurrentBalance 250H Unbalance 150HMaximum Allowable DC CurrentBalance 180mA Unbalance 2.8mAOutline typeWE-85Size (AxBxH : refer to Drwg.)80 x 88 x H110 mm Screw Size (mm)M3Weight 2.4KgTubes to be matched with6V6, VT-62/801A, 6F6, 42, VT-25/10
