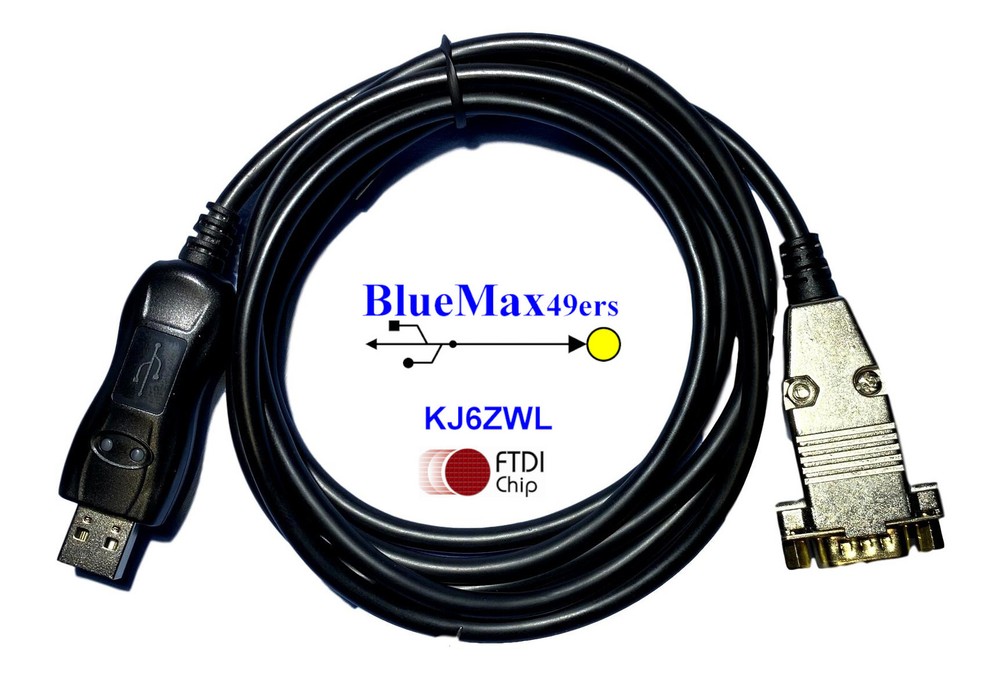

FTDI USB 2.0 Converter Adapter Cable to RS-232 9-Pin RS232 Serial Port STM-9MNUT
Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Brand | BlueMax49ers |
| Type | Cable |
| Connector A | USB Type-A Male |
| Connector B | DB-9 Male Welded Nuts |
| Cable Length | 6 ft |
| Features | US based |
| MPN | STM-9M-NUT 6 ft |
| Unit Type | Unit |
| Color | Black |
| Country/Region Of Manufacture | China |
| Manufacturer Warranty | 3 Years |
| Serial Converter Chipset | FT232RL |
| USB To Serial Adapter | FTDI |
This is a 1.8M USB to Serial cable RS-232 with a DB-9 Male connector, Metal Housing with coupler nuts. If need to add USB serial port to your computer to support the same cables you use on your older computer this is the cable you need to buy. It has the same functionality as a "true" serial port. Works with any USB ports!Featureso FTDI FT232RL and RS-232 level shifter chipso Cable pin-out specification notation [Computer Side Signal Name (Output Pin #) ]: TXD (3), RXD (2), RTS (7), CTS (8), GND (5), DSR(6), DCD(1), DTR(4)o USB 2.0 Full Speed compatible What is FTDI? All USB adapter cables have a one or more computer chip used to convert USB ports into RS-232 ports. My listing pictures show you the chip(s) inside the USB connector housing. Of course your cable comes with the chip enclosed in plastic housing. Most USB adapter cables sold today use a chip made by Prolific or even worse fake versions of the Prolific chip. There are serious driver OS compatibility issues with Prolific drivers that are a nightmare for users. You get what you pay for. If you see a USB adapter cable that comes with a CD that cable uses the Prolific chip and it contains the Prolific drivers. My cables use only the FTDI chip which is more expensive but there are no driver issues and no fake chips to worry about. You don’t need a CD with my cable. Windows will install the FTDI drivers automatically. You don’t want a cable with a CD!!Supported Operating SystemsDrivers are available which allow USB FTDI devices to work with the following operating systems: Windows 10 x64 Windows 10 x32 Windows 8.1 x64 Windows 8.1 x32Windows 8 x32 Windows 8 x64 Windows Server 2008 R2 x64 Windows 7 x32 Windows 7 x64 Windows Server 2008 Windows Server 2008 x64 Windows Vista x32 Windows Vista x64Windows Server 2003 x32 Windows Server 2003 x64 Windows XP x32 Windows XP x64 Windows ME Windows 98Linux Mac OS X Mac OS 9 Mac OS 8 Windows CE.NET (Version 4.2 and greater) Android Benefits with FTDI Cables No CD required, no drivers to install typicallyNo Blue screen of death caused by Prolific driversNo Prolific Error 10 - drivers cannot be installed problems No fake Prolific chips Contact me if you don’t see what you need
