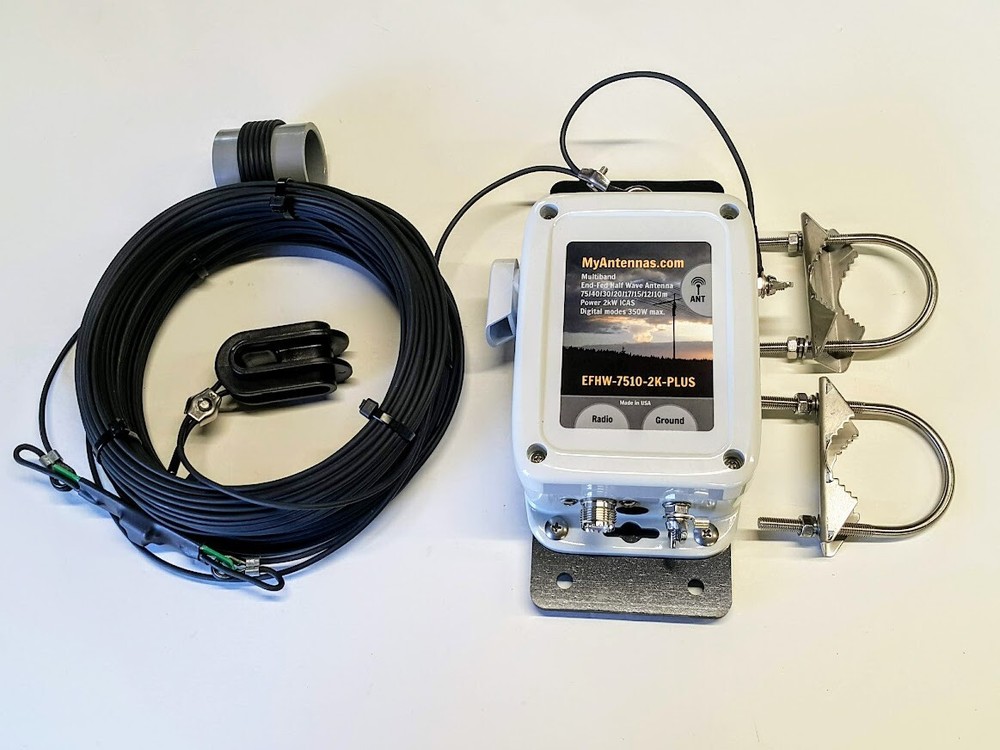

EFHW Antenna EFHW-7510-2K+ 2000W 75-10m / NO TUNER NEEDED!! / 132 feet long
Specifications
| All Returns Accepted | ReturnsNotAccepted |
| MPN | EFHW-7510-2K-PLUS |
| Unit Type | Unit |
| Country/Region Of Manufacture | United States |
| Compatible Product | Base Station Radio |
| Material | Plastic |
| Model | EFHW-7510-2K-PLUS |
| Compatible Brand | Universal |
| Directivity | Omni-Directional |
| Brand | MyAntennas |
| Color | White |
| Type | Antenna |
EFHW-7510-2K-PLUS Multi-Band End Fed Half Wave Antenna- NO TUNER NEEDED!EFHW-7510-2K-Plus, 2000W Multi-Band End Fed Half Wave AntennaImproved version of the EFHW-7510-2K, now with three large cores, 2.9-inch diameter, featuring just 0.5 dB Insertion loss 3-30MHz!This is an End-Fed Half-Wave (EFHW*) antenna for 75/40/30/20/17/15/12 and 10m bands. Unlike many END FED antennas on the market, this one does not require the Antenna Tuner to operate. Due to the High Impedance feed point, the antenna is less height dependent. You can put it up at 10 or 50 feet in the air without much change in VSWR values.*This is perfect antenna for ALE HF-link stations, NVIS, MARS, ARES, EMCOMM etc.Various installations such as horizontal, vertical, inverted V, inverted L, etc. are possible. Your VSWR values could vary with different wire configurations and the height of installation.NO TUNER needed!NO counterpoise needed! (Grounding recommended*)Frequency coverage: 3.5-30MHzResonant on 75/40/30/20/17/15/12/10mWire length ~130 feetPower Handling: 2kW I.C.A.S350W digital modes continuous (FT8, RTTY, etc)Stainless Steel hardwareStealth #14 AWG XLPE black wireConnector: Silver/Teflon SO-239The 2K-Plus model has three large stacked cores *Grounding at the transformer box or end of the coaxial cable is recommended for protection of your equipment from an electrostatic buildup in order to prevent ESD- electrostatic discharge.NOTE: grounding does not affect antenna tuning. If the transformer box is installed high above the ground , there is no need to route the ground wire from the box, instead just ground the coaxial cable at the entrance to your home or at the station.---------------------------------------------------------------------------------------------No guarantee or liability is either expressed or implied pertaining to damages to persons, buildings, or equipment in the installation or use of our antennas. You must use extreme caution when working around power lines. If the antenna were to come into contact with a voltage carrying line it could be fatal.
