Cable113 Motorola 20 pin CDM CDM1250 VHF UHF Repeater
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| MPN | 113 |
| Brand | MRE |

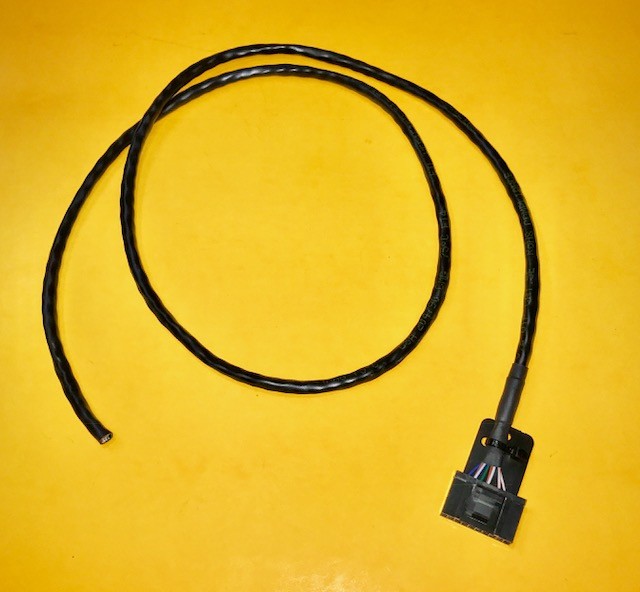

Normal 0 false false false EN-US X-NONE X-NONE DEAR VALUED CUSTOMERS: BEFORE BUYING THIS PRODUCT: Please check out the MONEY-SAVING TIP below. =================================================================================== ITEM DESCRIPTION: (One) 36" twisted pair cable assembly with perfect-fit latching plug at one end to mate with Motorola radios having a 20-pin rear accessory connector, i.e.: CDM750, CDM1250, CDM1550, CDM1550LS, CDM1550LS+ and Pro Series. Blunt other end. All my kits feature connector shells and contact pins manufactured by AMP, the same supplier used by Motorola. The AMP parts in my kits are identical in quality and precision to the AMP parts found in "Motorola brand" kits. The pre-attached contact pins in my kits are professionally installed to AMP specifications using automated AMP tooling, for a perfect fit and flawless mechanical and electrical connection. Check out the positive feedback from thousands of satisfied customers who've discovered the quality and value of connector kits from MRE1032. This cable assembly features a high quality, flexible, 4-pair cable with individually color-coded, 24 awg stranded conductors (8-conductors total). Eight (8) pins of the radio connector are brought out to flying leads. This cable is wired as follows: Pin # 2 MIC BLU (use this input for speech audio) 3 PTT WHI-BLU 5 FLAT TX AUDIO GRN (use this input for PL tones, data, signaling, etc) 7 GROUND WHI-GRN 8 PROGRAMMABLE I/O (COR) ONG 11 RECEIVE AUDIO WHI-ONG 4 PROGRAMMABLE OUTPUT BRO 14 PROGRAMMABLE I/O WHI-BRO These well-constructed cables are perfect for conveniently interfacing 20-pin Motorola radios to consoles, repeater controllers, tone panels, tone remote adaptors, TNCs, interconnects, etc. Includes data sheet with connector pinouts & functions and wire color codes. Hard-to-find item, reasonably priced. NOTE: Please view my other items (click on MRE Direct, above). I offer several different versions of this 20-pin cable, as well as cables for 16-pin radios and other connector kits and parts. =========================================================================================== MONEY-SAVING TIP:MRE1032 is pleased to offer FREE UNLIMITED COMBINED SHIPPING.BEFORE PAYING, please browse our eBay Store, MRE DIRECT , for additional products you may be interested in.To enter our store, click the small "Door" icon near the top-right of this listing.When buying multiple items, you can save on shipping.HERE'S HOW:Don't click "Buy it Now" and pay for each item separately, because this results in separate shipments and shipping fees for each item.INSTEAD:click "ADD TO CART" for each item When all desired items are in your cart, transmit ONE PayPal payment for the entire order. This way, you'll pay to ship only ONE (1) item. ANY & ALL additional products on the same payment ship free - no limit ! Mobile App Users: If an "Add to Cart" button is not visible on eBay's mobile app, use a computer instead. =========================================================================================== RECEIPT OF PAYMENT is expected within 7 days after purchase.ALL ORDERS SHIP WITHIN 24 HOURS after receipt of payment.U.S. SHIPPING ONLY Due to excessive losses involving international orders, we regret we are no longer shipping outside the United States or replying to emails regarding same. ===========================================================================================
