Board Mount 6 Position RCA Female Jacks Audio Video Connector Socket TV Stereo
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Type | RCA Connector |
| Brand | SSCI |
| Compatible Brand | Universal |
| MPN | RCA-628NI-14 |
| Customer Number | LFSLM051-0015-00 |
| Other Part Numbers | 628NI-14 |

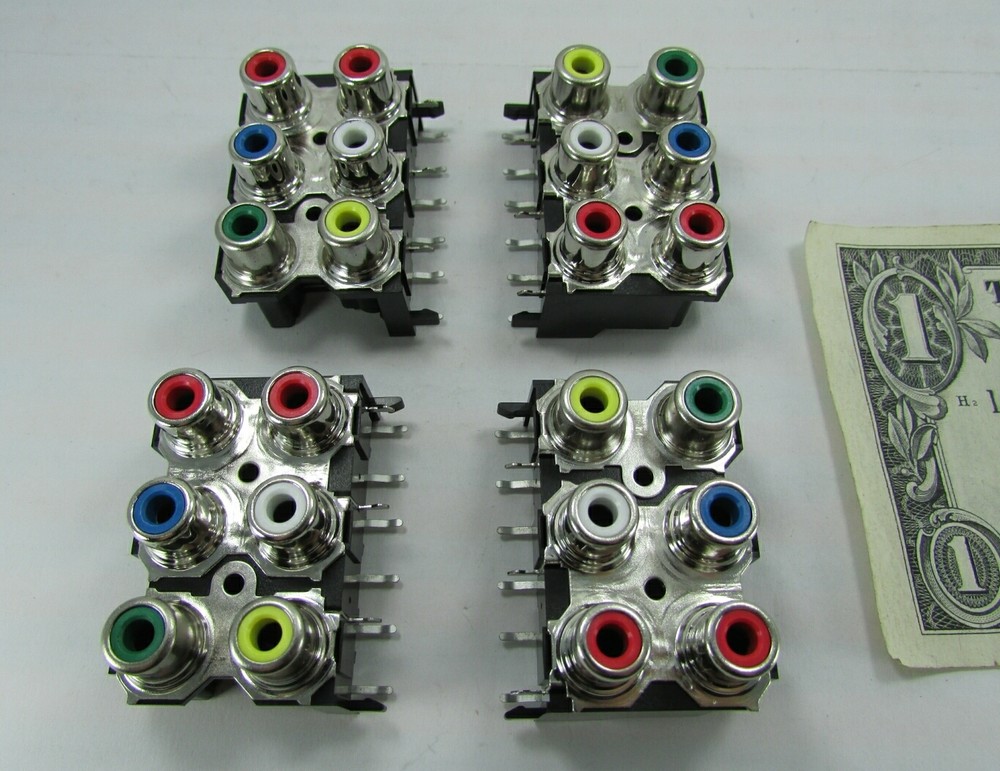

2863aXA1D.14 New PCB Panel Vertical Solder Mount 6 Way (2 x 3) RCA Female Jack Connector Sockets, for Various Audio / Video Connections; Manufacturer Part Number RCA-628NI-14 or RCA628NI14, or 628NI-14; Customer Part Number LFSLM051-0015-00. Each bid quantity is for a Lot of Four (4) Connectors. You may bid / buy any number of lots, up to the total quantity available above. These were purchased at an electronics liquidation earlier this year, and they were brand new in the original factory boxes. We repackaged them in heavy Ziplok bags. These are very sturdy connectors, and they probably cost several dollars apiece when they were purchased. The solder pins running to the center conductors (rear side) are tin over solid brass. The outer conductors (front side) attract a magnet, so they are apparently chrome plated steel. Colors are Red (x2), White (x1), Blue (x1), Yellow (x1), and Green (x1), so they will blend with almost any wiring décor. Sold in convenient lots of four, because that's how many would fit in the bags. According to the calipers: Overall length: 1.612" / 40.96 mm Overall depth: .857" / 21.78 mm Mounted height (excluding solder terminals): 1.062" / 26.98 mm Mounting footprint: 1.612" x .550" (40.96 mm x 13.98 mm) Pitch (solder pin spacing): Approx. .299" / 7.60 mm Solder pin length (front row): .148" / 3.78 mm Solder pin length (back row): .170" / 4.32 mm Pitch (RCA connectors): .575" / 14.60 mm
