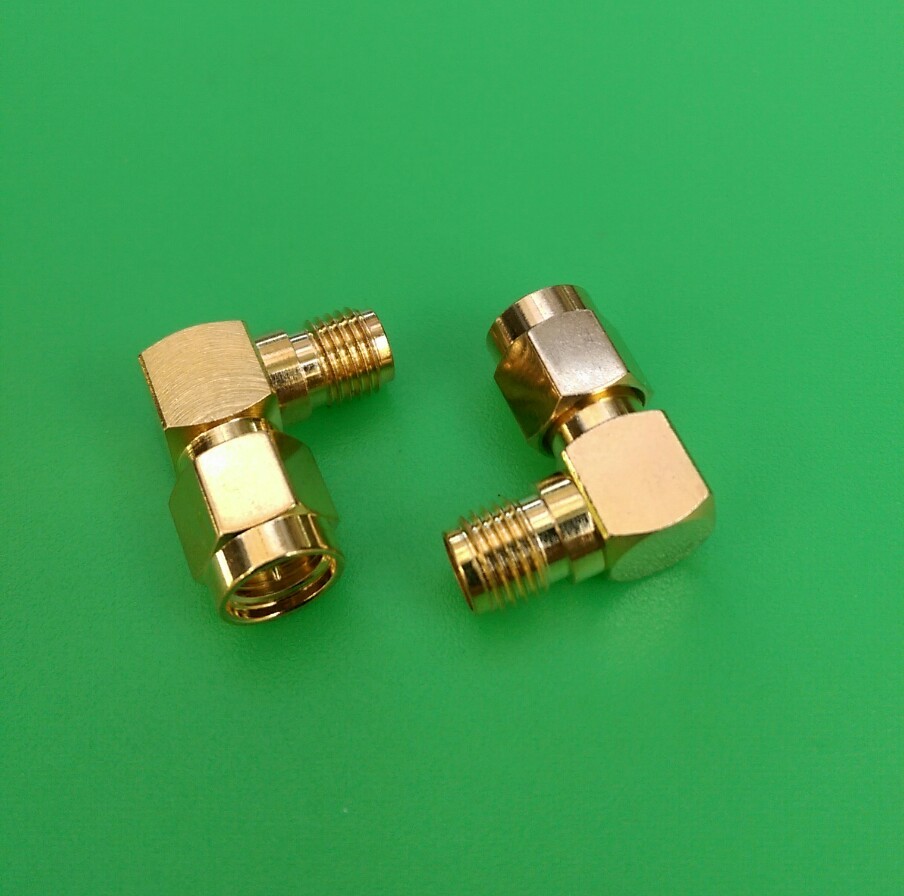

(2 PCS) SMA Male to SMA Female Right Angle RF Connector – USA Seller
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Country/Region Of Manufacture | Taiwan |
| Type | Connector |
| MPN | S-040-1TGG |
| Connector A | SMA Male |
| Connector B | SMA Female |
| Brand | DLS |
Right Angle SMA Male to SMA Female Adapter (#S-040-1TGG) - 2 PCs per order- Made in Taiwan- Excellent Quality SMA SERIES SPECIFICATIONS --------------- ELECTRICAL ---------------- - Impedance: 50 OHM - Frequency Range: DC -12.4 Ghz on Flexible cable DC - 18 Ghz on Semi-Rigid cable - Working: 250 VRMS max. - Dielectric Withstanding Voltage: 750 VRMS min. - VSWR Straight: 1.3 max Right Angle: 1.5 max - Contact Resistance: Center Contact: 6 Milliohms max. Outer Contact: 2 Milliohms max. - Insulator Resistance: 5000 Megaohms min. --------------- MATERIAL --------------- Parts Name Material Finish - Body, Metal Parts Brass per QQ-B-626 Gold Plated- Center Contacts Male: Brass per QQ-B-626 Gold Plated Female: Brass per QQ-B-626 Gold Plated Phosphor Bronze per QQ-B-750 Beryllium Copper per QQ-B-530 - Insulators PTFE None
